Features

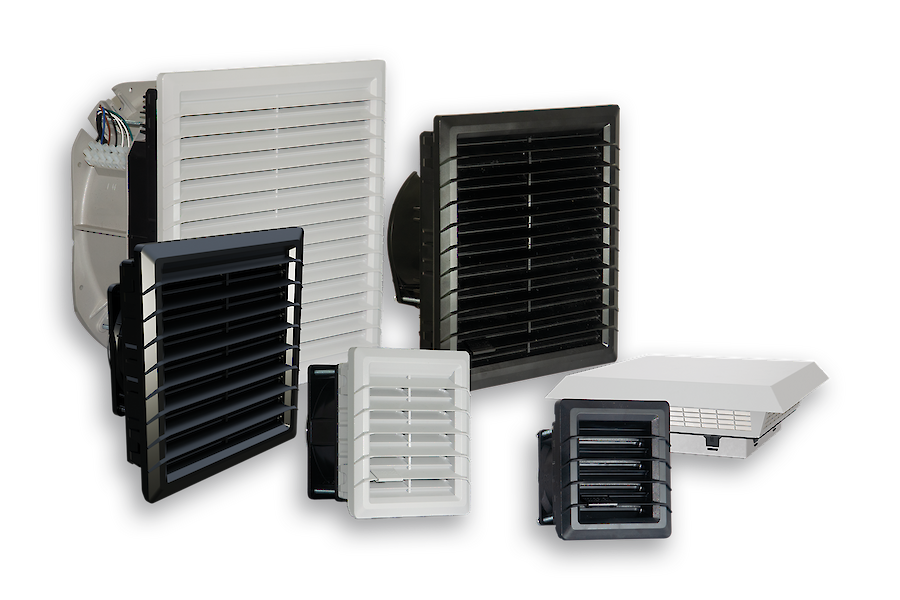

SOLIFLEX filter fans and exhaust filters effectively ventilate enclosures and control panels if the ambient temperature is lower than the internal enclosure temperature. Our filter fans come in an attractive plastic housing and are available for both AC and DC voltages.
All dimensions and enclosure cutouts correspond to the market standards. The integrated filter mats inside the filter fan and outlet filter effectively prevent the inside of the enclosure from becoming dirty. Seifert filter fans can be installed without tools, and the filter can also be easily replaced. SOLIFLEX filter fans are also available with reversed air flow and as NEMA 3R (IP 55) models.
Our new roof mounted filter fans are ideal for applications where there is no space on enclosure doors or walls.
Quick Links
| Type | Description | Air Flow Volume Unimpeded | Dimensions (A x B x C) |
|---|---|---|---|
| FL 4010A | Filter fan | 12 m³/h | 106.5 x 106.5 x 66.6 mm |
| FL 4023A | Filter fan | 22 m³/h | 106.5 x 106.5 x 79.5 mm |
| FL 4210A | Filter fan | 67 m³/h | 150 x 150 x 73 mm |
| FL 4210D | Filter fan | 47 m³/h | 150 x 150 x 73 mm |
| FL 4411A | Filter fan | 110 m³/h | 204 x 204 x 95.5 mm |
| FL 4610D | Filter fan | 225 m³/h | 250 x 250 x 124.2 mm |
| FL 4620A | Filter fan | 230 m³/h | 250 x 250 x 124.2 mm |
| FL 4621A | Filter fan | 105 m³/h | 250 x 250 x 111.8 mm |
| FL 4830A | Filter fan | 455 m³/h | 325 x 325 x 160.2 mm |
| FL 4883A | Filter fan | 820 m³/h | 325 x 325 x 158.5 mm |
| FL 6064A | Roof mounted filter fan | 275 m³/h | 147 x 457 x 457 mm |
| FL 6065A | Roof mounted filter fan | 490 m³/h | 147 x 457 x 457 mm |
| FL 6085A | Roof mounted filter fan | 630 m³/h | 147 x 457 x 457 mm |
| FL 6095A | Roof mounted filter fan | 970 m³/h | 147 x 457 x 457 mm |
| FL 6995A | Roof mounted filter fan | 1400 m³/h | 147 x 457 x 457 mm |
| FL 6996A | Roof mounted filter fan | Low noise: 1,500 m³/h High Speed: 4,000 m³/hr | 310 x 560 x 560 mm |
| FF 6000 | Roof exhaust filter | 147 x 457x 457 mm | |
| FF 4000 | Exhaust filter | ||
| FC 4000 | Protection hood IP 56 | ||
| Filter media | G3 Filter media IP 54 | For standard sizes |
