Features

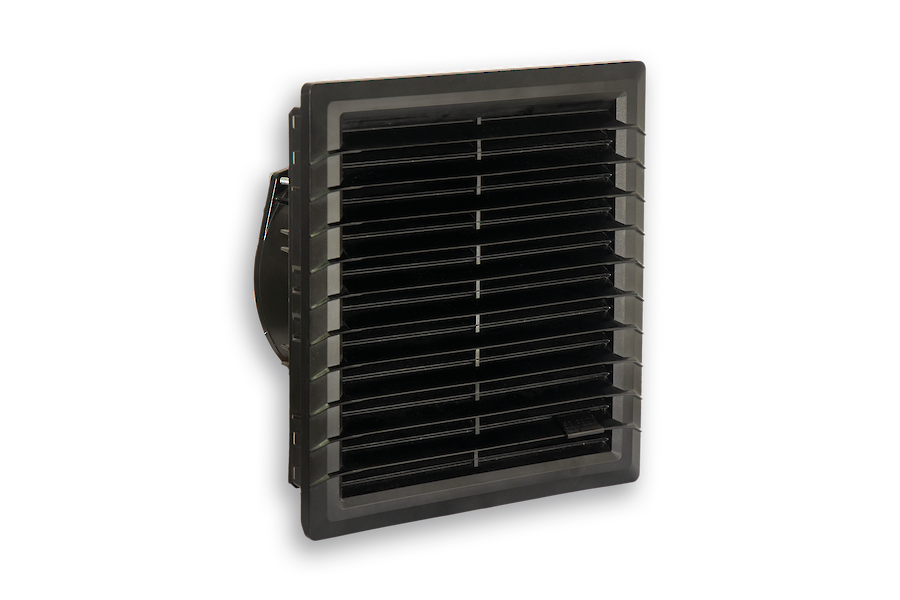

- Suitable for indoor and outdoor (black models) applications
- Models with IP 55 protection available
- Tool-free mounting, easy and quick replacement of the filter media
- Pair our FDA-approved, UL-certified protection hoods with SOLIVENT PRO filter fans for cleanroom and food-grade applications
- Customised colour options upon request
Order Number 4720902001 Brand Name SOLIVENT PRO Colour RAL 7035 IP protection class to EN 60 529 IP 54 UL Typ (UL 50E) 12 Approvals CE, cURus, cULus UL File Number E498756 Accessories Hose-proof protection hood FC 4000 200 FDAHose-proof protection hood FC 4000 200Thermostat 301050 Operating Temperature Range 10°C - 60°C Storage temperature range -40°C - 70°C Mounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
204.5 x 204.5 x 43.1 mm Weight 400 g. Cut out dimensions 177 x 177 mm Datasheet Generate PDF Instructions User manual SOLIVENT PRO Order number IP rating UL Type RAL colour Flow type1) Air flow (m³/h)2) Air flow with exhaust filter (m³/h) 4720902001 54 12 / 3R RAL 7035 N/A N/A N/A 4720902003 54 12 / 3R RAL 9005 N/A N/A N/A 4720903001 55 12 / 3R RAL 7035 N/A N/A N/A 4720903003 55 12 / 3R RAL 9005 N/A N/A N/A 1) B = Blowing – from ambient into the enclosure (standard version)
S = Suction – from enclosure to ambient (on request)2) unimpeded 50/60 Hz
Taric ode 84145915
Order Number 4720902003 Brand Name SOLIVENT PRO Colour RAL 9005 IP protection class to EN 60 529 IP 54 UL Typ (UL 50E) 12, 3R Approvals CE, cURus, cULus UL File Number E498756 Accessories Hose-proof protection hood FC 4000 200 FDAHose-proof protection hood FC 4000 200Thermostat 301050 Operating Temperature Range -40°C - 60°C Storage temperature range -40°C - 70°C Mounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
204.5 x 204.5 x 43.1 mm Weight 400 g. Cut out dimensions 177 x 177 mm Datasheet Generate PDF Instructions User manual SOLIVENT PRO Order number IP rating UL Type RAL colour Flow type1) Air flow (m³/h)2) Air flow with exhaust filter (m³/h) 4720902001 54 12 / 3R RAL 7035 N/A N/A N/A 4720902003 54 12 / 3R RAL 9005 N/A N/A N/A 4720903001 55 12 / 3R RAL 7035 N/A N/A N/A 4720903003 55 12 / 3R RAL 9005 N/A N/A N/A 1) B = Blowing – from ambient into the enclosure (standard version)
S = Suction – from enclosure to ambient (on request)2) unimpeded 50/60 Hz
Taric ode 84145915
