Features
- Suitable for indoor and outdoor (black models) applications
- Models with IP 55 protection available
- Tool-free mounting, easy and quick replacement of the filter media
- Pair our FDA-approved, UL-certified protection hoods with SOLIVENT PRO filter fans for cleanroom and food-grade applications
- Customised colour options upon request

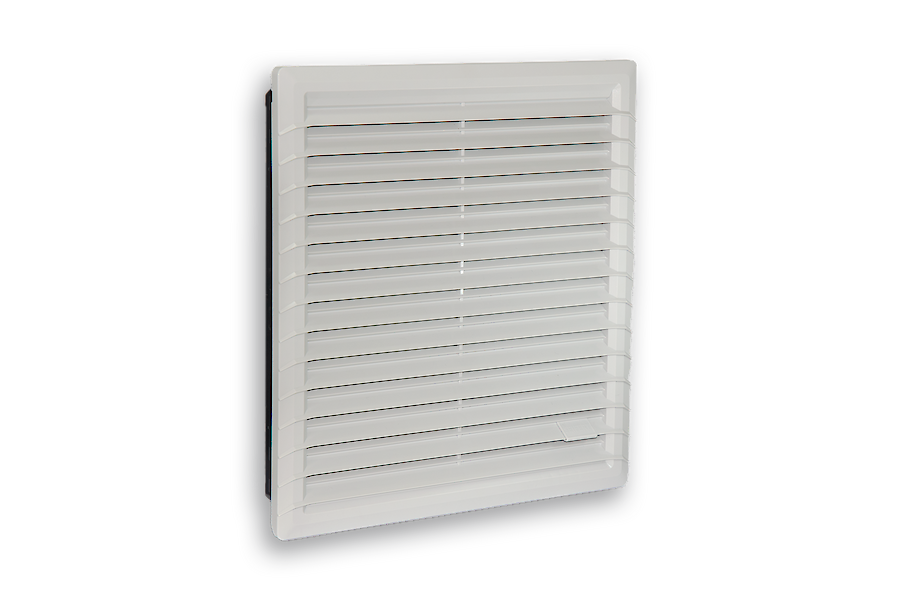

Order Number 4732902001 Brand Name SOLIVENT PRO Colour RAL 7035 IP protection class to EN 60 529 IP 54 UL Typ (UL 50E) 12 Approvals CE, cURus, cULus UL File Number E498756 Accessories Hose-proof protection hood FC 4000 400 FDAHose-proof protection hood FC 4000 400Thermostat 301050 Operating Temperature Range -10°C - 60°C Mounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
323.5 x 323.5 x 43.5 mm Weight 1 kg. Cut out dimensions 292 x 292 mm Datasheet Generate PDF Instructions User manual SOLIVENT PRO Order number IP rating UL Type RAL colour Flow type1) Air flow (m³/h)2) Air flow with exhaust filter (m³/h) 4732902001 54 12 / 3R RAL 7035 N/A N/A N/A 4732902003 54 12 / 3R RAL 9005 N/A N/A N/A 4732903001 55 12 / 3R RAL 7035 N/A N/A N/A 4732903003 55 12 / 3R RAL 9005 N/A N/A N/A 1) B = Blowing – from ambient into the enclosure (standard version)
S = Suction – from enclosure to ambient (on request)2) unimpeded 50/60 Hz
Taric ode 84145915

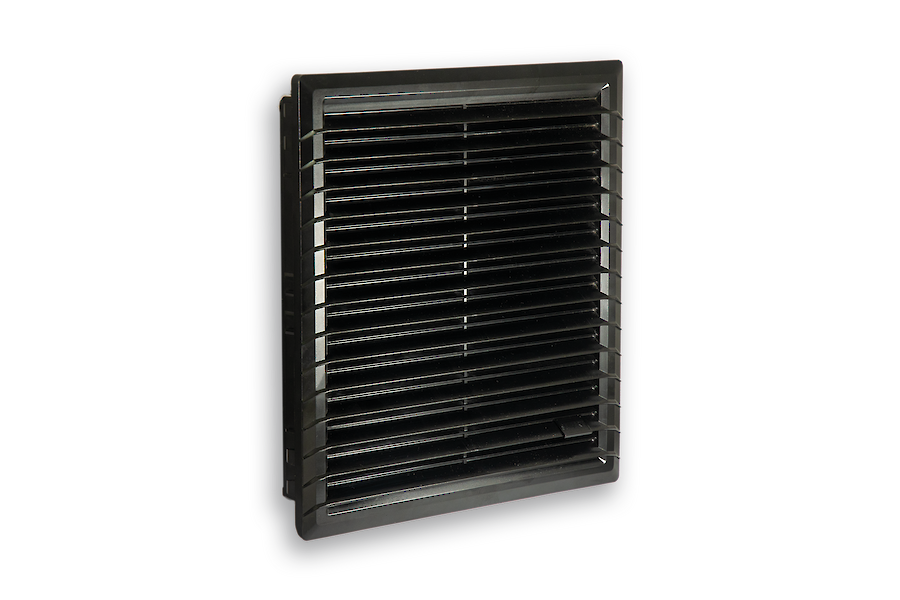

Order Number 4732902003 Brand Name SOLIVENT PRO Colour RAL 9005 IP protection class to EN 60 529 IP 54 UL Typ (UL 50E) 12, 3R Approvals CE, cURus, cULus UL File Number E498756 Accessories Hose-proof protection hood FC 4000 400 FDAHose-proof protection hood FC 4000 400Thermostat 301050 Operating Temperature Range -40°C - 60°C Mounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
323.5 x 323.5 x 43.5 mm Weight 1 kg. Cut out dimensions 292 x 292 mm Datasheet Generate PDF Instructions User manual SOLIVENT PRO Order number IP rating UL Type RAL colour Flow type1) Air flow (m³/h)2) Air flow with exhaust filter (m³/h) 4732902001 54 12 / 3R RAL 7035 N/A N/A N/A 4732902003 54 12 / 3R RAL 9005 N/A N/A N/A 4732903001 55 12 / 3R RAL 7035 N/A N/A N/A 4732903003 55 12 / 3R RAL 9005 N/A N/A N/A 1) B = Blowing – from ambient into the enclosure (standard version)
S = Suction – from enclosure to ambient (on request)2) unimpeded 50/60 Hz
Taric ode 84145915
